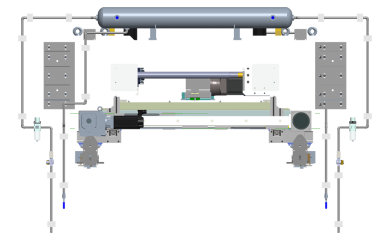

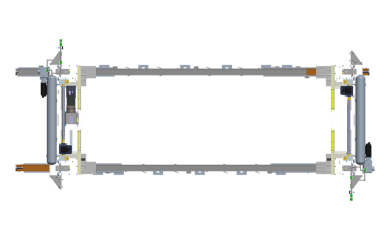

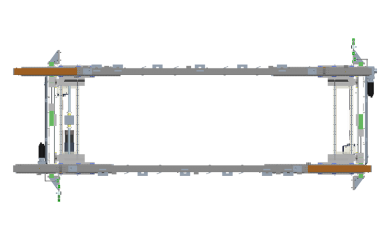

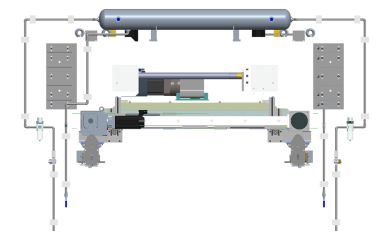

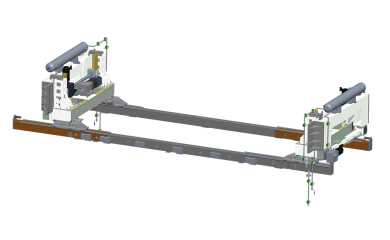

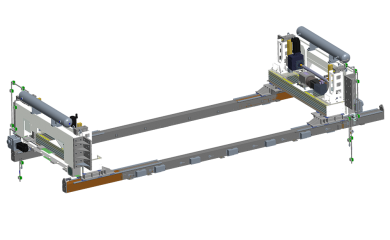

Transfer and multi-station systems
Our Transfer and multi-station systems feature a proven modular design with aluminium profiles, very low vibration and optimum dynamic performance, resulting in increased cycle times and productivity.
The main problems of customers can be solved:
Increase beats per minute.
Enhanced safety and stability during production.
Improve production efficiency and capacity.
| CNC transmission system 3 | CNC transmission system 4 | CNC transmission system 6 | CNC transmission system 7 | |
| Maximum table length（mm） | 3500 | 4500 | 6000 | 7500 |
| Transfer arm end profile (Aluminum)（mm） | 100*130 | 125*160 | 150*195 | 200*250 |
| Transfer arm automatic clamp | Optional | Optional | Optional | Optional |
| Maximum transfer load（kg） | 100 | 200 | 250 | 400 |
| Auxiliary rod (Aluminum)（mm） | 30*80 | 30*80 | 30*80 | 30*80 |
| stroke（mm） | ||||
| X | 800 | 1200 | 1200 | 1800 |
| Y（Minimum distance between rods） | 375 | 600 | 900 | 900 |
| Z | 130 | 200 | 300 | 300 |
